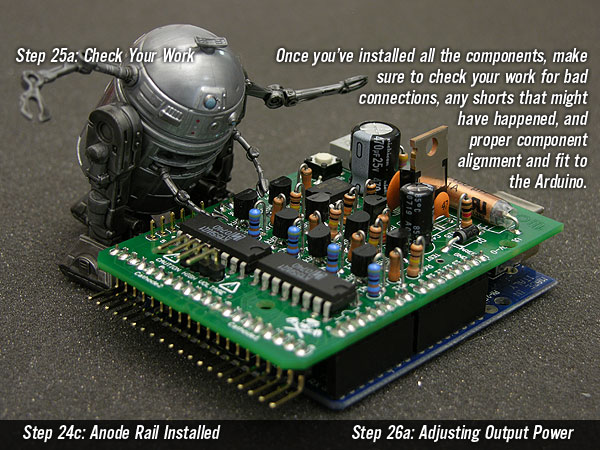

Assemble the ArduiNIX Shield to the Arduino board, and check your work, solder welds, alignment and orientation of components. Now doublecheck. It's important to have everything in the proper place and orientation for the first bootup so you don't fry out any components. We claim NO RESPONSIBILITY if your board starts sizzling due to bad assembly.
