Welcome to ArduiNIX.com!
The ArduiNIX shield is a user programmable platform for driving multiplexed Nixie tube or other high voltage displays**.
**The ArduiNIX requires a 9 or 12v DC 650mA or greater power supply, not included. Arduino is not included.

The ArduiNIX shield uses digital data pins 2,3,4,5,6,7,8,9,10,11,12,13 on the Arduino.

AREF, IOREF, TX(digital 1), RX(digital 0), Analog 0-5, digital 18 and 19 are free to use as inputs/outputs.

News you can use!

/////// Store Closed for the 2023 Holiday Season ///////



July 25, 2020 - Store back open for now. Things might ship a bit slow due to COVID-19. Thanks for your patience and understanding.

Also added 1" hard enamel robotpirate logo pin to the store as well as a link to my teepublic shop where robotpirate logo tshirts and stickers and such can be found. Thanks!

February 2, 2020 - Store closed temporarily, will re-open soon

June 14, 2019 - New Display Board - IN-12x6:

Can be used with IN-12a or IN-12b tubes. B style tubes have decimal indicators. These can be activated by grounding out one of the six pins to the right of the cathode bank.

April 5, 2019 - STOCK UPDATE: ArduiNIX mainboards back in stock, so kits boards, and pre-assembled units are available again in the store. Pre-assembled units now no longer have choice for pre-installed anode and cathode headers, but headers are included for you to solder in.

March 13, 2019 - IN17 STOCK UPDATE: IN-17 nixie tubes are out of stock temporarily, more are ordered. Until they come in, I've taken the IN-17x4, x6, and x8 tube kits off the store page.

February 16, 2019 - IN17x6V3.0 BOARD CODE UPDATE: 6 Nixie tubes and 4 nixie dots (For colons) UPDATED to v3.1 This works with Anode1, 2, 3, 4 from the Shield output mapped directly to Anode 1,2,3,4 on the anode input on the IN17x6v3.0 board. Available on the downloads page.

September 20, 2018 - Store Update: Store open, prices adjusted, international shipping is now calculated automatically at checkout. No more "select international shipping" option. This will save my international customers some money.

July 7, 2016 - Four Digit IN-17 display boards are back! ArduiNIX IN-17x4V3 kit and board now in the store.

June 25, 2016 - New Product Update! ArduiNIX V3 kit and board: This board now features a much more accessible input/output section, bringing every pin the ArduiNIX Shield does not use for driving tubes up to the front header section for easy access. Now available on the store page. New assembly instructions are available here.

June 21, 2016 - New Product Update! Now available on the store page, IN-17 x 8 display kit and board:

As well as IN-17x6 V3 display kit and board. IN-17x6v2 is on sale.

May 21, 2016 - Now offering fully assembled and tested ArduiNIX Shields - now available on the store page.

February 20, 2016 - Anode and cathode cable pack now available on the store page.

October 14, 2015 -Store Update: ArduiNIX V2 main boards and kits; IN-17x6V2 main boards and kits back in stock! Check out the store page and refresh it with F5 if need be.

September 26, 2015 -Store Stock Update: ArduiNIX V2 main boards out of stock, which means V2 kits are as well. I'm placing an order for both the V2 main board and the IN-17x6V2 expansion board as well, so look for those to be in stock in a couple weeks. Slothfurnace V2 Clampcards are still in stock, complete your ESB Luke, ROTJ V2 Luke, or TFA Finn saber build today!

April 18, 2015 - Store is open, IN-17 Tubeboards and kits are back in stock. A limited number of V1 IN-17x6 tube boards and kits are available. I will most probably not be ordering more of this board, but they are available while the stock of 25 boards are here. When they're gone, they're gone. IN-17x6 V2 boards are back in stock and will continue to be restocked going forward.

January 27, 2015 - Shipping Update! All current ArduiNIX kit orders now come with a 5.6 pf capacitor for position C3. If you would like the additional caps to try 1pf for higher voltage (approx 200-300 volts) or the 47pf cap for lower voltage (approx 90-170 volts) please email me with your order. For now, the 5.6pf is the sweet spot of around 120 to 200 volts. When I am out of the 1pf caps, I'll discontinue them.

December 09, 2014 - Here's your basic instruction sheet for both versions of the ArduiNIX:

Step
Part Name Board Location
Qty
1
ANX_Board V1 OR V2
1
2
Damper Diode 1.0 Amp 400 Volt D1
1
3
100uH 1 Amp RFI Suppression Coil L1
1
4
25 Volt 470 uF Capacitor C2
1
5
350 Volt 1 uF Capacitor C1
1
6
500V 1pF NPO Capacitor (approx. 100V-200V output) OR 500V 47pF SL Capacitor (approx. 200V-300V output) C3
1
7
500V 47pF SL Capacitor C4

1

8
IRF730 400V 5.5 Amp Single-Gate MOSFET Q10

1

9
1/4" Squ 1K 10% Single Turn Trimmer R19
1
10
6X6 FLAT 4.3mm BTN Tactile Switch S1
1
11
General Purp Single NE555N Timer IC IC1
1

13

1/4watt 33Kohms 5% Metal Film Resistors R1-R5
5
14
1/4watt 100Kohms 5% Metal Film Resistors R6-R9
4
15
1/4watt 470K ohm 1% Metal Film Resistors R10-R13
4
16
1/4watt 1Kohms 5% Metal Film Resistors R14, R15
2
17
1/4watt 10Kohms 5% Metal Film Resistors R16
1
18
1/4watt 220Kohms 5% Metal Film Resistor R17
1
19
1/4watt 470ohms 5% Metal Film Resistor R18
1
20
PNP MPSA92 Small Signal Transistor Q6-Q9
4
21
NPN MPSA42 Small Signal Transistor
Q1-Q5
5
22
Nixie Driver IC - SN74141 *OR* Equivalent IC2, IC3
2
40 Pin .100" Pin Strip Headers Pinrails
1

Please note, if you want a voltage range of approx. 100-200 volts, use a 47pF capacitor in position C3. If you're looking for more output in the 200-300 volt range, you can use a 1pF capacitor in C3

November 23, 2014 - As version 2 of the ArduiNIX shield is being rolled out, I'd like to talk about the plan going forward.

I will be discontinuing the version 1 ArduiNIX shield, and placing remaining stock of V1 on sale till they are gone. The old IN-17x4 and IN-17x6 boards will be phased out as well in favor of V2 versions of those boards. Note! there will be no compatability issues from V1 and V2 kits, as the pinouts will remain the same. However, V2 tube boards will be standardized internally, such that 6x and 4x tube boards will use the same code.

The V2 6x tube boards should arrive next week, and will feature the new standardized tube wiring layout, as well as spots for four INS-1 colon dots for Hh:Mm:Ss separation.

Following that, new V2 4x tube boards will be available. These will have spots for two INS-1 colon dots for Hh:Mm display.

If there's interest, I have an 8x IN-17 tubeboard designed.

November 20, 2014 - ArduiNIX V2!

Improvements include:

  • Better parts layout for ease of assembly: non-anode channel resistors all located in a row
  • Tall parts located at rear of board, for fold down option that reduces overall shield height
  • Standardized 555 timer chip wiring in power circuit
  • New input/output header
  • Better test points
  • Same parts list
  • No more big groundplane under coil on back side of board = reduced signal noise
  • Improved labeling of Anode bank
  • Sling the capacitors UNDER the main board for an even shorter overall height

Assembly instructions are more or less the same, but as part layouts have changed, I'll be making a new assembly instruction set.

April 1, 2014 -IN-17 Nixies back in stock! IN-17 x 6 tube boards available in store.

March 16, 2014 -Testing a new batch of MPSA92s, so I have temporarily made the mainboard kits unavailable while I run some tests. Should be back in the store by end of week.

March 8, 2014 -Just delivered this clock to a customer, thought I'd show it off!

This is a 6xZ560M nixie clock with 4xINS-1 neon lamps all in custom bezels, in a hardwood box.

This features custom laser etched stainless steel back control panel and illuminated set and mode buttons.

March 4, 2014 -ArduiNIX Mainboards and IN-17 Tube boards in stock! I also have a small number of IN-17 nixie tubes, so if you would like a full IN-17 kit in either four tube or six tube versions, please email me for availability.

January 30, 2014 -Parts Update! All new kits shipping as of January 31 will include this new capacitor at position C1:

aIt is the same exact value as the previous C1 Capacitor, but just a different diameter case size. The old ones are out of stock at Mouser, and this one will fill in while the others are re stocked. This is a 1uf 350V Cap, same as the previous release. Just a tad bigger around.

December 29, 2013 - Arduinix Shield Kits IN stock! All new kits are shipping with a 1pf capacitor at position C3.

NOTE! Current batch of resistors for positions R1 through R5 are 47K instead of the normal 33K. This is due to Mouser, my supplier, sending me mis-labeled resistors. This is the reason we had a few underpowered kits a few months ago, and why all new kits are shipping with a 1pf capacitor at position C3. Once my stock of resistors is gone, I will be ordering a new batch of components. HOWEVER, all current kits should work properly with 47K resistors at R1 through R5 and a 1pf capacitor at C3. If you have any questions, feel free to contact me, or follow Robotpirate on Facebook for up to date info!

September 16, 2013 -Nixie Entertainment System - This clock/raspberry pi game emulation station uses an ArduiNIX and an IN-17 x 4 tube board kit. Built by yours truly, for a wedding gift commission.

May 9, 2013 - IN-17 Nixie Tubes TEMPORARILY OUT OF STOCK - Check back soon, as I have some on the way from Russia... with love! Also, Forum member Risen has sent in some great shots of his gorgeous clock build!

Beautiful!

February 27, 2013 - CODE UPDATE!! - New version of Six Tube Clock Crossfade, with flickering fix, for more steady illumination plus crossfade of digits. This code is designed for default connections of our IN-17 6 tube board.

February 24, 2013 - IN-17 Nixie tube still scarce, will restock IN-17 tube boards and kits when and if I find a new supply. In the meantime, I just completed a new high end clock commission:

Apart from the kits I sell here, I do the occasional high end clock build. This one features 4 z560M tubes, two INS-1 dot colon indicators, two illuminated ring buttons for set and mode, and a laser etched rear control plate.


Here you can see the control plate and personalized laser etched design. Very vintage, was sorry to see this one leave the shop. I need to make a copy for myself.

June 18, 2012 - James Griffith sends in this awesome handmade build:

April 17, 2012 - Quick tip about assembling the IN-17 Tube boards:

Starting with the anode, or either pin in the gap, really... Leave the first pin untrimmed, but trim each progressive lead about a millimeter or two. As you go, they should get progressively shorter. Make sure the last lead is still long enough to make it through the PCB for soldering.

When inserting into the board, start with the longest lead, walk around till you have all the leads inserted. Having them trimmed progressively shorter is a HUGE time saver, and is so much easier to install this way.

April 16, 2012 - Sweet double ArduiNIX clock from Carnegie Mellon Build 18 event! From Derek:

"The clock displays time and date of which get synced from the internet and stored on a RTC module (no millis() function running this clock!). Since I was using so many tubes I had to use two arduinix modules.  The case was made acrylic that I laser cut from a Solid Works drawing."

Thanks Derek!


March 21, 2012 - Amazingly cool timelapse ArduiNIX assembly vid! Thanks veriquex!



January 1, 2012 - SWAG! I just got in an order of stickers and shirts, considering adding robotpirate logo Tshirts to the store. if interested, email me at bradley @ robotpirate.com

December 23, 2011 - Recent orders will have a delay due to Christmas Holiday, I will start shipping out beginning Wednesday the 28th. Merry Christmas and Happy New Year!

November 19, 2011 - ArduiNIX 1.0 kit featured in MAKE Magazine's Ultimate Kit Guide

The print and web edition of MAKE Magazine's Ultimate Kit guid features our ArduiNIX kit! So honored to be in the pages of MAKE! On newsstands and internet browsers now!

November 16, 2011 - IN-19a, IN-19b alphabetic display!

These Russian IN-19a and IN-19b tubes display different letters and symbols. JUST enough to spell my daughter's name. Unfortunately, these tubes didn't include a capital N. But, it's nice to use an ArduiNIX for something other than a clock!

November 13, 2011 - IN-17 Nixie Tubes just got really hard to find!!

Unfortunately, my suppliers overseas just got bought out of their stock of IN-17 Nixie tubes. Therefore I have listed them as out of stock in the store, till I can secure a new supply. Tube boards are still available, however.

November 1, 2011 - Crossfade code Flicker and Fade fix!

With help from Warcabbit, we've been able to fix the second to last digit crossfade issue in the 6 bulb crossfade code! This has been an issue for a while, so if you have the six tube board download the new code now!

August 30, 2011 - ArduiNIX approved 9V power supplies - Now in the ArduiNIX Store!

These are perfect for powering the Arduino/Arduinix combo. Individually boxed. Manufacturer's Description: High quality switching 'wall wart' AC to DC 9V 650mA wall power supply. These are switch mode power supplies which mean the output is regulated to 9V and the capable output current is 650mA.

These will power most projects that don't require more than 650mA of current. Center-positive 5.5x2.1mm barrel connector.

Works with 100-240VAC inputs.

August 21, 2011- IN-17s freshly restocked - IN-17 x 4 and IN-17 x 6 Tube Board Kits Now in store.

August 15, 2011- IN-17 x 6 Tube board CODE CONTEST! - IN-17 x 4 Tube boards BACK IN STOCK, and they brought a friend with them from China... Introducing the brand new IN-17 x 6!

These are fresh in, so new I don't even have code for these yet, so if you'd like A FREE IN-17 x 6 Kit, SEND IN YOUR CODE! The best code gets a free IN-17x6 board WITH TUBES! That's right, folks! Enter your code to WIN! (Winner will be chosen solely by me, your friendly neighborhood robotpirate.) What's that you say? You need the pinout for this board to write the code? Certainly! It's right here: (click to make big)

Here's what will qualify your entry. Achieve any or all of these points to enter.

  • Functioning crossfade clock code for this six bulb setup, with set function.
  • Timer clock code for this six bulb setup, set start and stop.
  • Anything interesting or out of the ordinary that would set you apart from the other nixie builders out there.

Code entries will be tested and finalists will be featured on the site. Winning entry will get one free IN-17 Tube board and set of IN-17 Nixie tubes. Contest ends 9/15/2011. Email bradley at robotpirate dot com for entries and info.

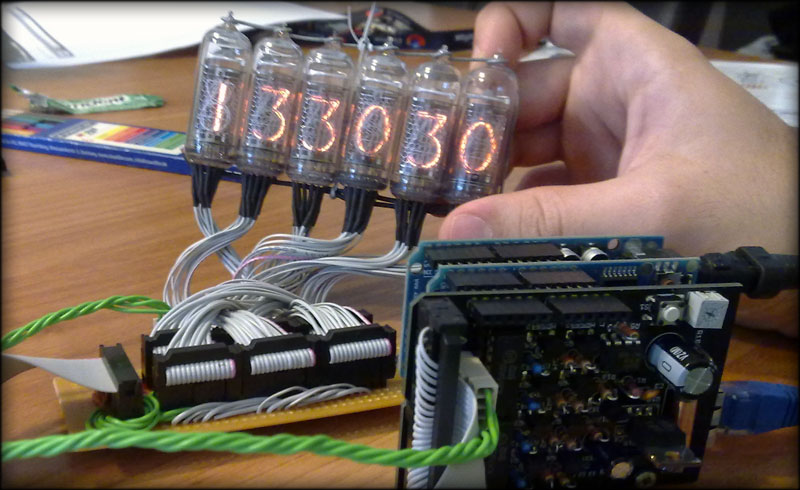

August 3, 2011 - Forum member radmeck Sends in this awesome build and writeup! Thanks!
