IN-12x6 Board Assembly Steps: 0 1 2 3 4 5 6 7 8

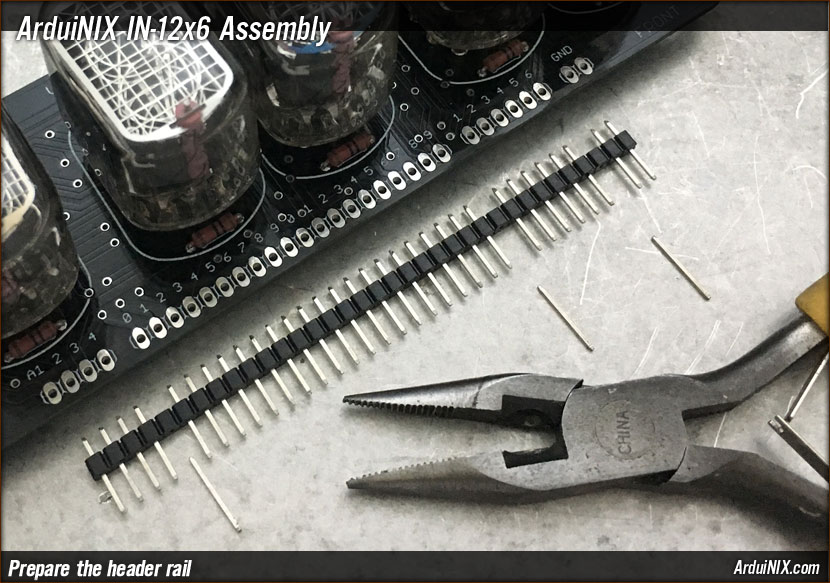

Step 7: Prepare the header rail The header pin section is designed to use most of one header pin rail, either straight pin or bent pin. By removing the illustrated pins from the plastic rail with a pair of needle nose pliers, you can use the whole rail to install into the board, making this step much easier than separating the header rail into pieces and soldering small sections. |
 |
|
|
