Step 1: Trim tube leads in stairstep pattern

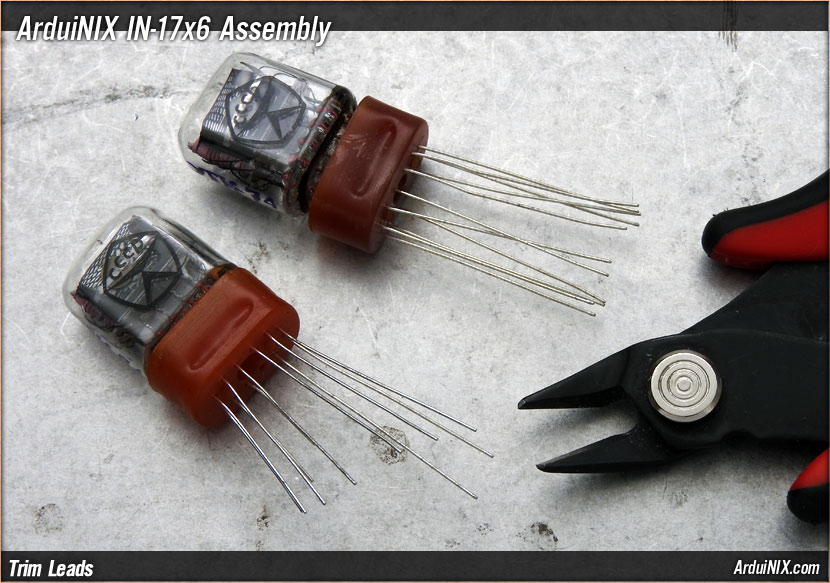

First, to make tube installation a lot easier, trim the tube leads progressively shorter, stairstepping them around. Start with the anode lead, trimming it to around a half inch, then as you come to each next lead, trim it a little longer till you get around to the last lead, cathode #9.

It doesn't have to be exact, just as long as each lead is a bit longer than the previous one.
