IN-17x6 Board Assembly Steps: 0 1 2 3 4 5 6 7 8 9 10 11

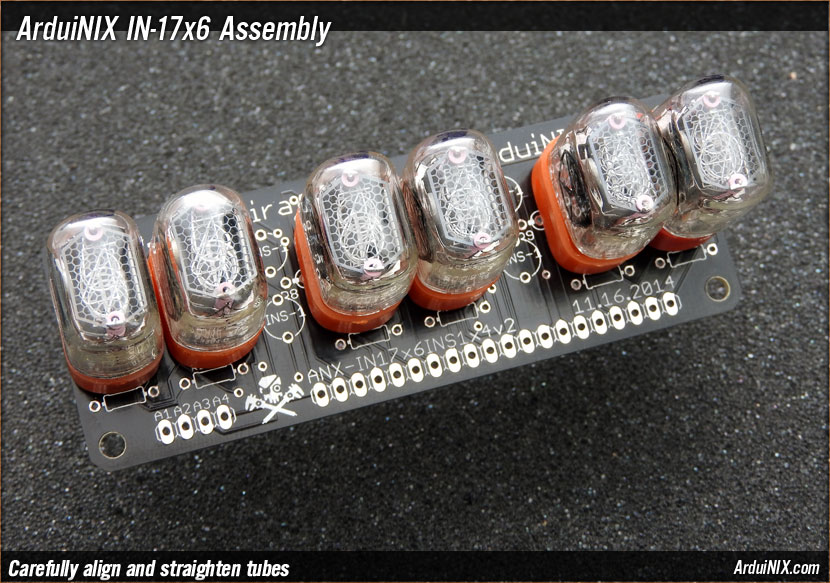

Bend any lead arrays under the tubes to bring the digits in line with the display, rearranging any tubes that don't fit well next to each other. If you've trimmed your leads in the stairstep pattern, this will be very easy. In this example, tubes 1 and 2 had to be swapped so they fit well and the digits stood straight. |
 |
|
|
