IN-17x6 Board Assembly Steps: 0 1 2 3 4 5 6 7 8 9 10 11

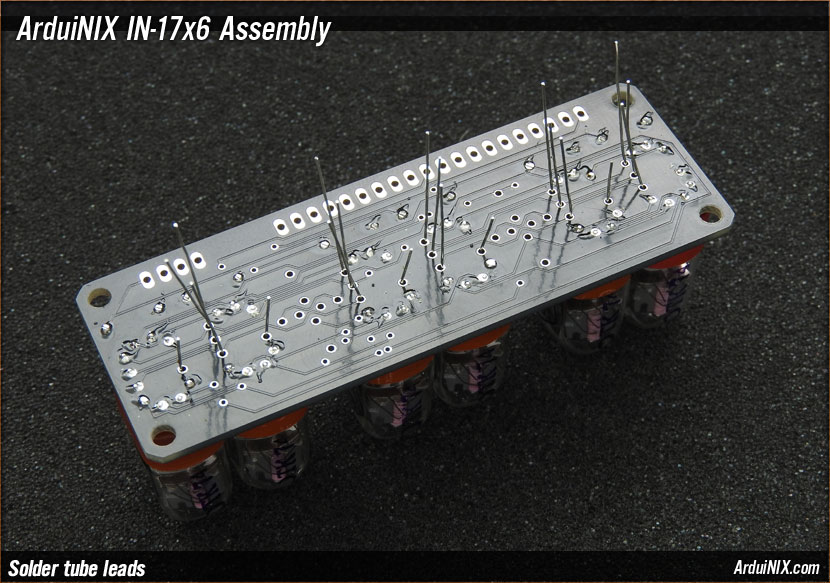

As you complete the alignment and soldering of your tubes, solder the tube leads that are easiest to get to, then trim away the excess leads. Move on to the inside tube leads. Trim excess leads close to the board, making sure not to cut into the board, or damage any traces on the board. |
 |
|
|
