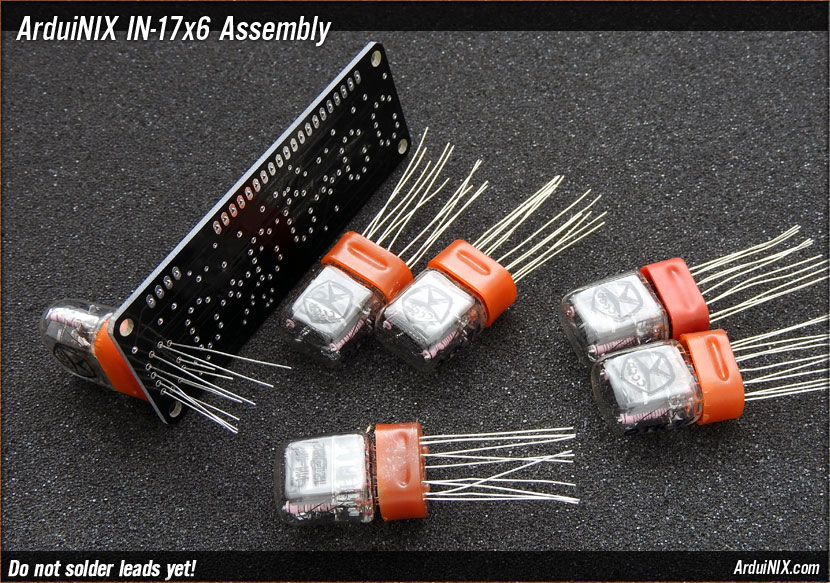

Step 3: Trim the rest of the tube leads and install tubes into board

Once you get your first tube lowered all the way to the board, and the leads inserted into the proper locations, move on to the next tube.

DO NOT SOLDER THE LEADS YET!

If you solder the tube in now, you will have great difficulty in straightening and aligning all your tubes to each other. Wait to solder till later in the tutorial.
