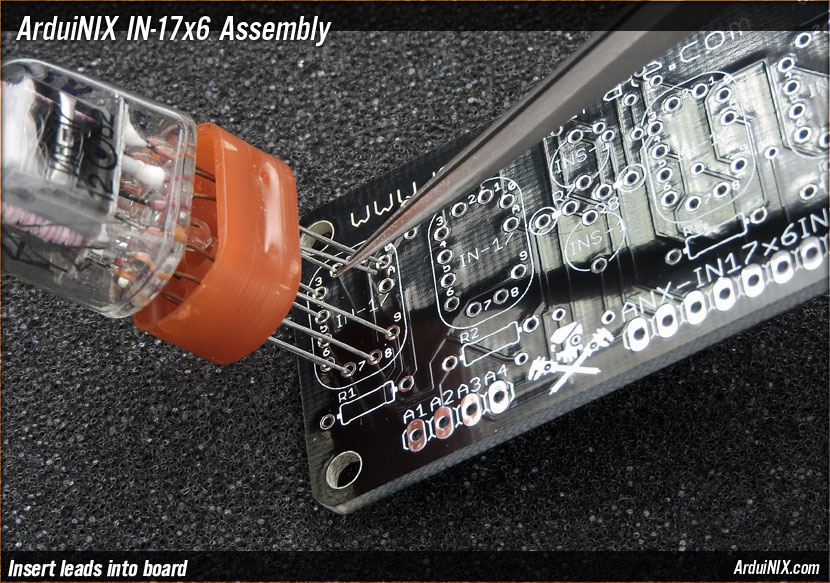

Step 2: Insert tube leads into proper locations on board

Once your leads are trimmed in a stairstep pattern, you can insert the longest lead, cathode #9, and as you bring the tube closer to the board, the next lead in the stairstep will align with the hole it goes in to.

Just walk the tube around with your fingers as you lower it on to the board, and if you need to at the end, use tweezers to align the anode lead with the hole.
