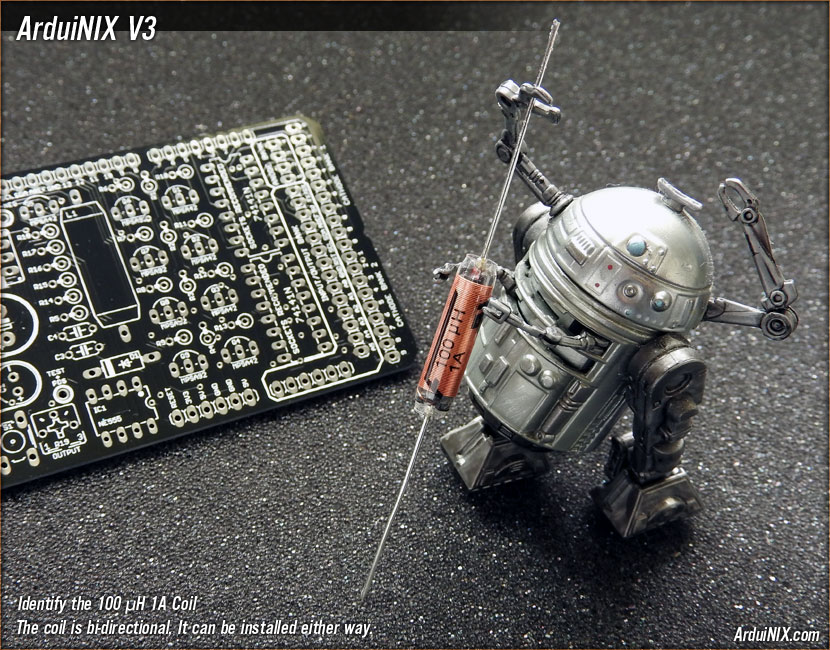

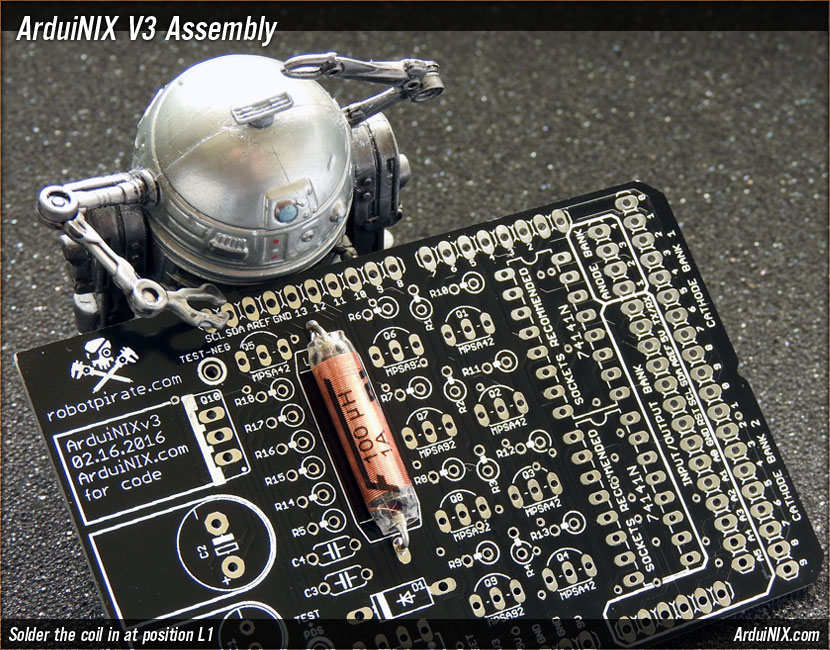

Step 1: L1 = 1x 100uH 1 Amp RFI Suppression Coil The coil is one of the main components that allows the shield to take 9 volts up to 180. It can be installed either direction, so don't worry about polarity.
