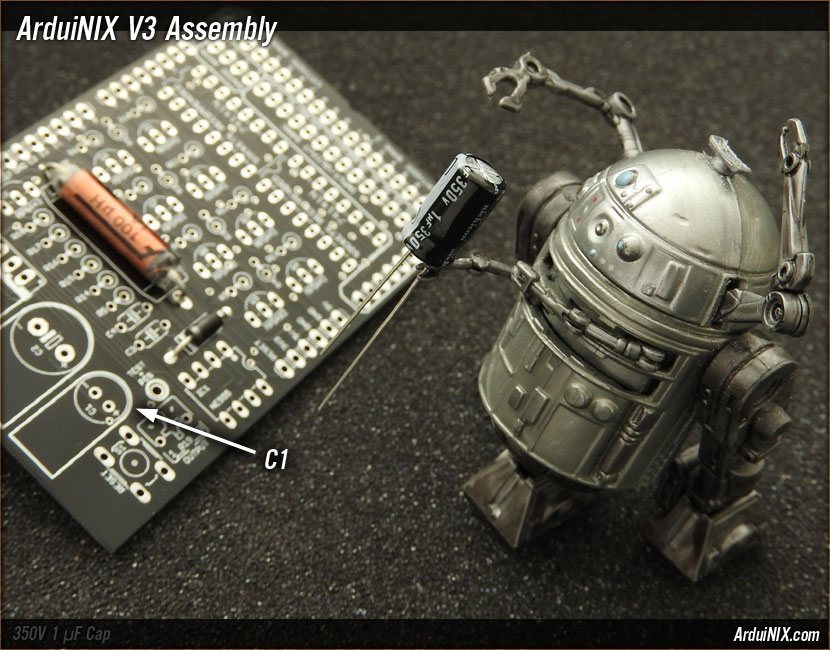

Step 3: C1 = 350Volt 1uF Capacitor

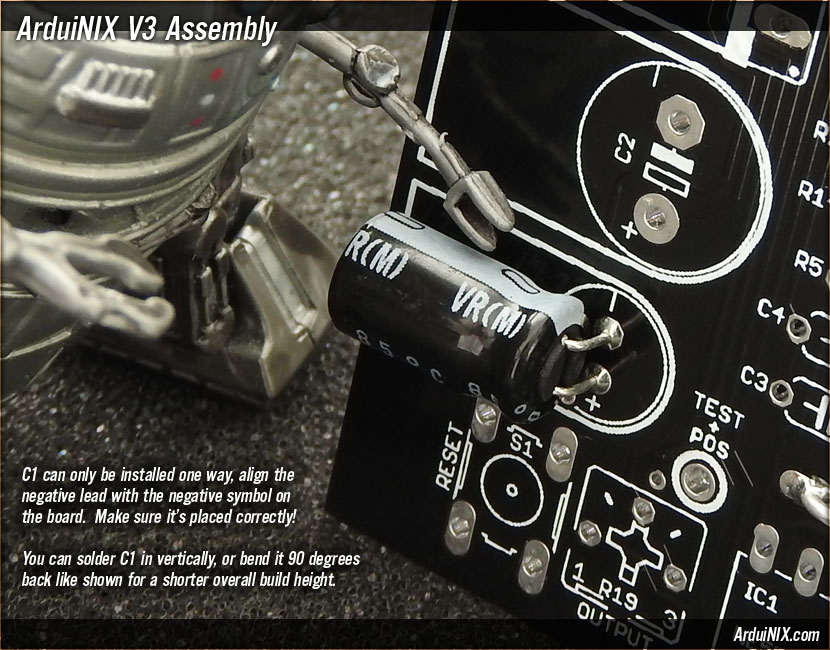

C1 is the smaller of the two polarized capacitors. The negative lead is indicated on the side of the capacitor. Make sure to line up the negative lead with the negative pad on the board.

You may choose to install C1 vertically, or bent 90 degrees as shown.
