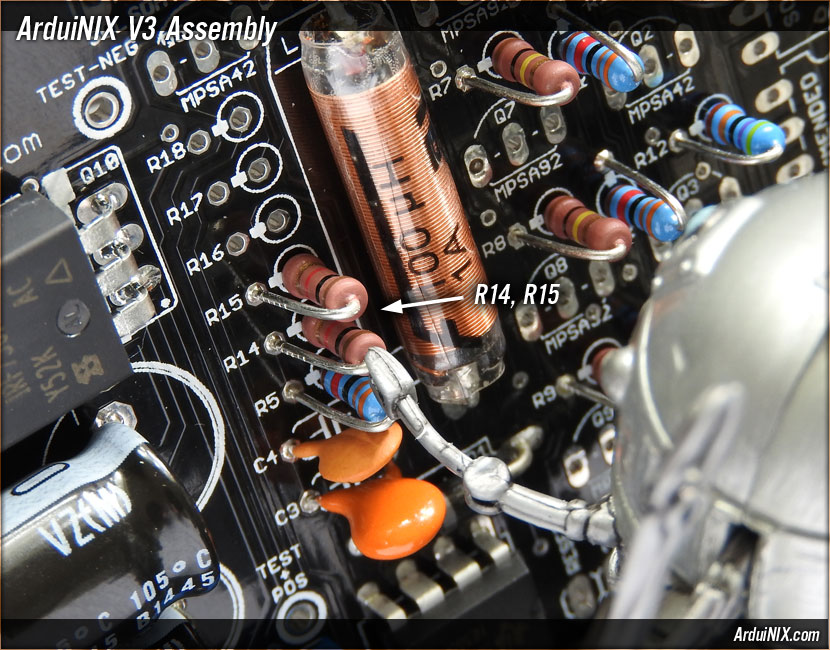

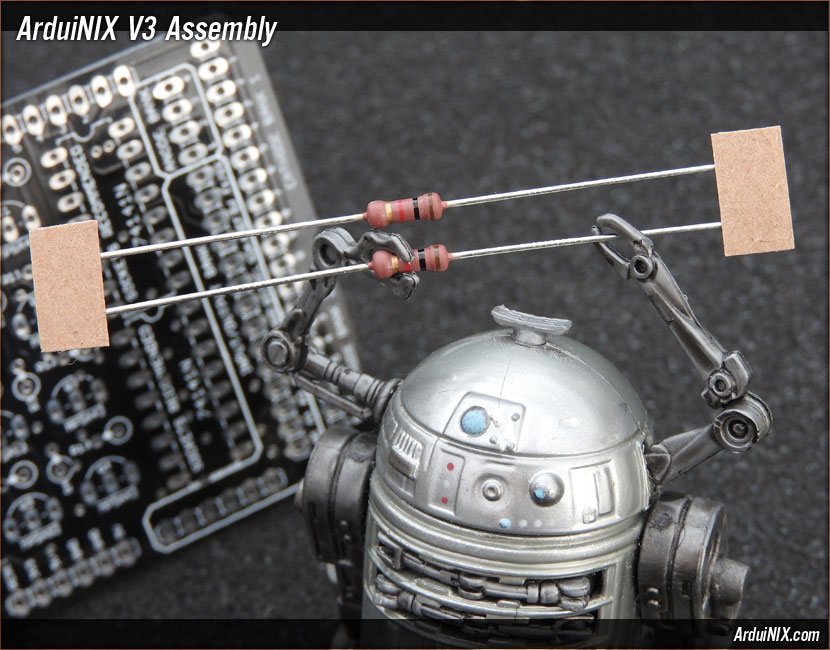

Step 14: R14, R15 = 2x 1/4 Watt 1k Ohm Resistors Test your resistors with a multimeter to make sure the proper ones are selected for each step. Install R14 and R15 right above R5 to the left of the coil.
