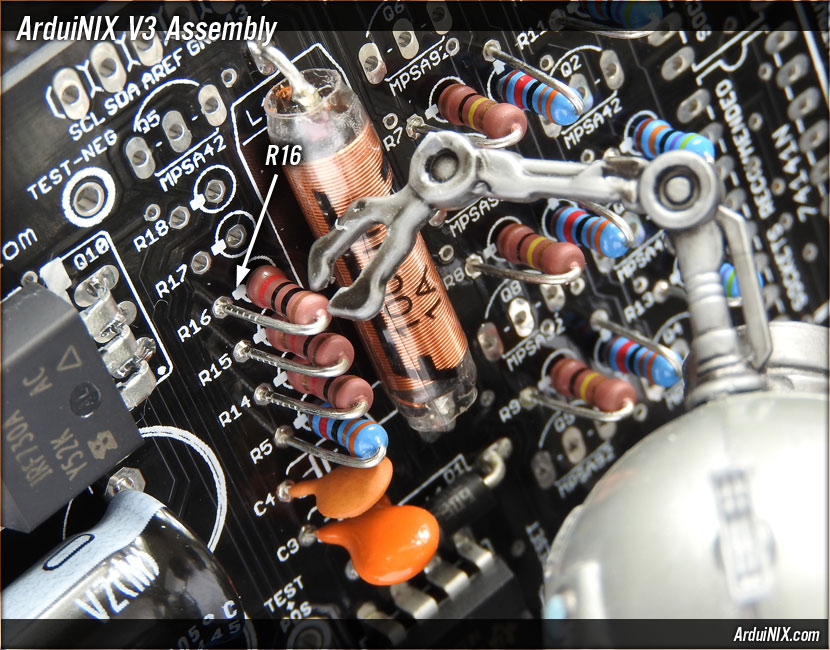

Step 15: R16 = 1x 1/4 Watt 10k Ohm Resistor Test your resistors with a multimeter to make sure the proper ones are selected for each step. Install R16 above R15 to the left of the coil.
