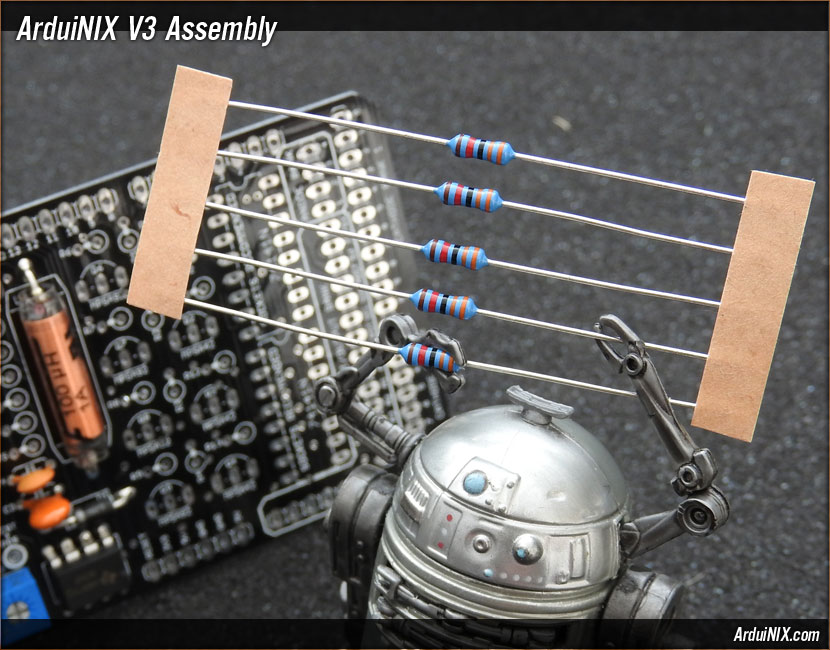

Step 11: R1 - R5 = 5x 1/4 Watt 33k Ohm Resistors

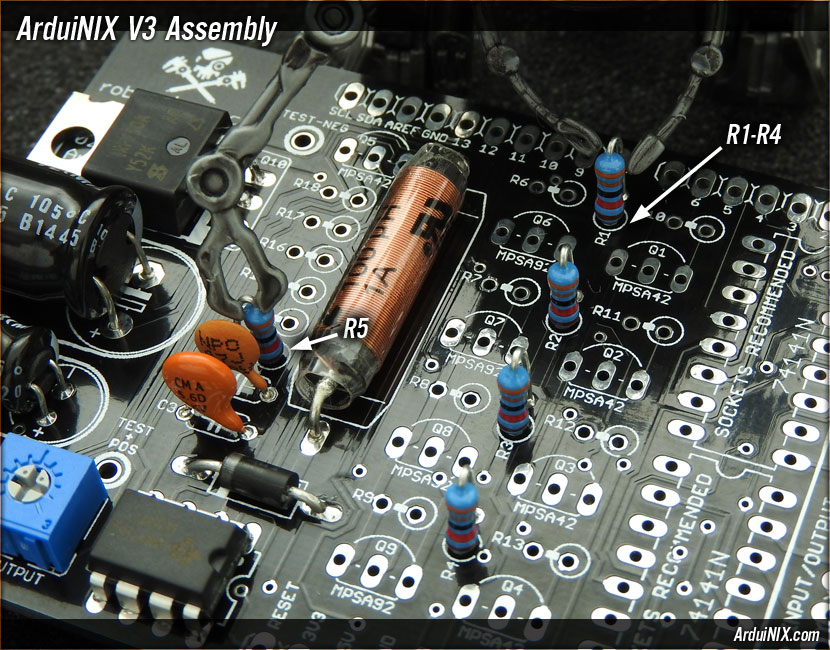

Use a multimeter to test the resistors to make sure the proper ones are selected for each step. Install R1 through R4 in a row between the transistors. R5 goes right next to the C4 capacitor, on the other side of the coil.
