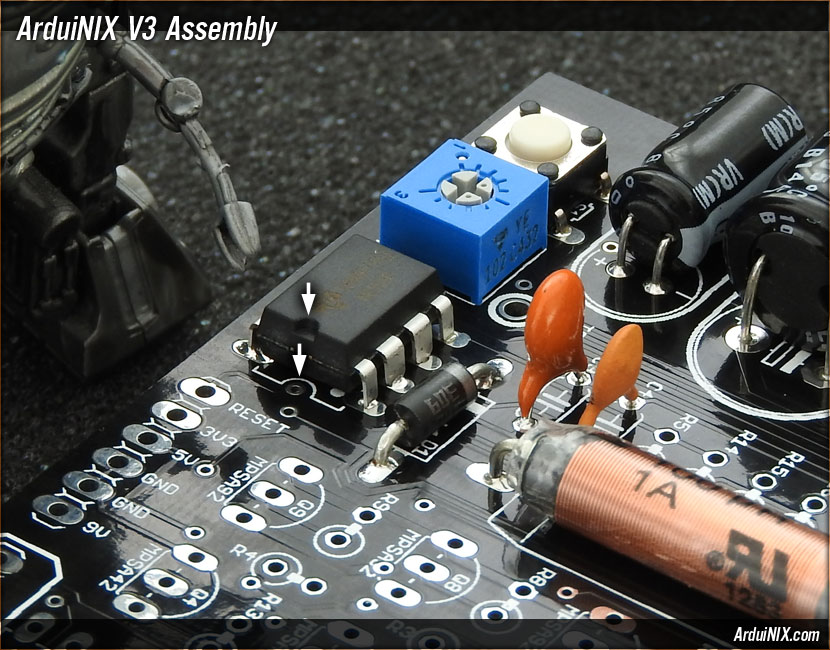

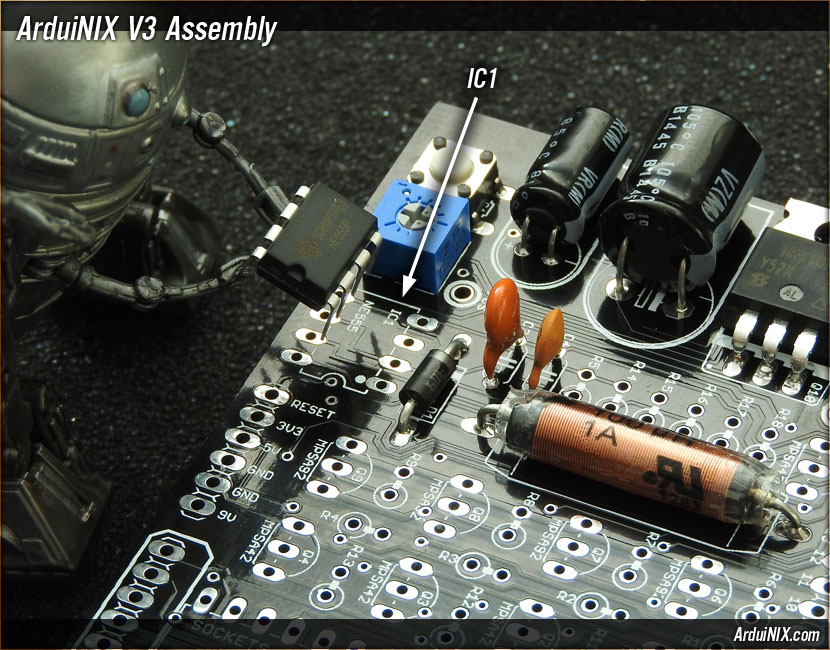

Step 10: IC1 = NE555N Timer This is the timer that controls oscillation to the power end of the ArduiNIX. It can only be installed one direction. Make sure the notch on the timer case lines up with the notch on the board diagram.
