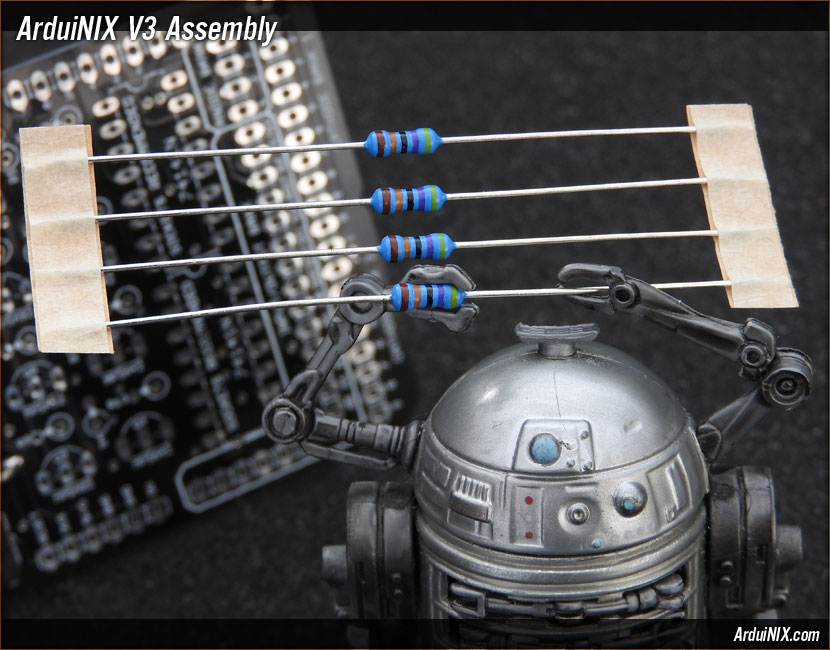

Step 13: R10 - R13 = 4x 1/4 Watt 470k Ohm Resistors

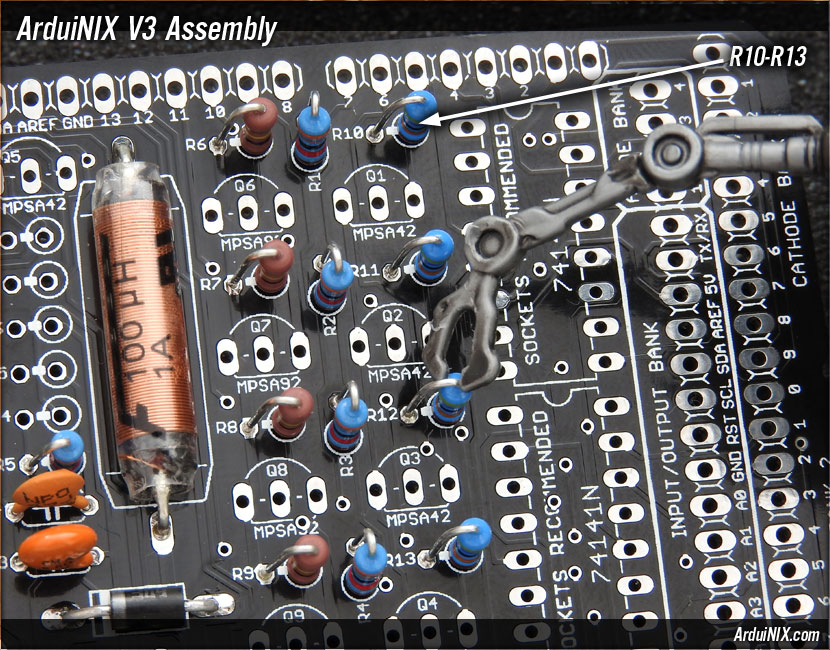

Test your resistors with a multimeter to make sure the proper ones are selected for each step. Install R10 through R13 in a row to the right of R1 through R4.
