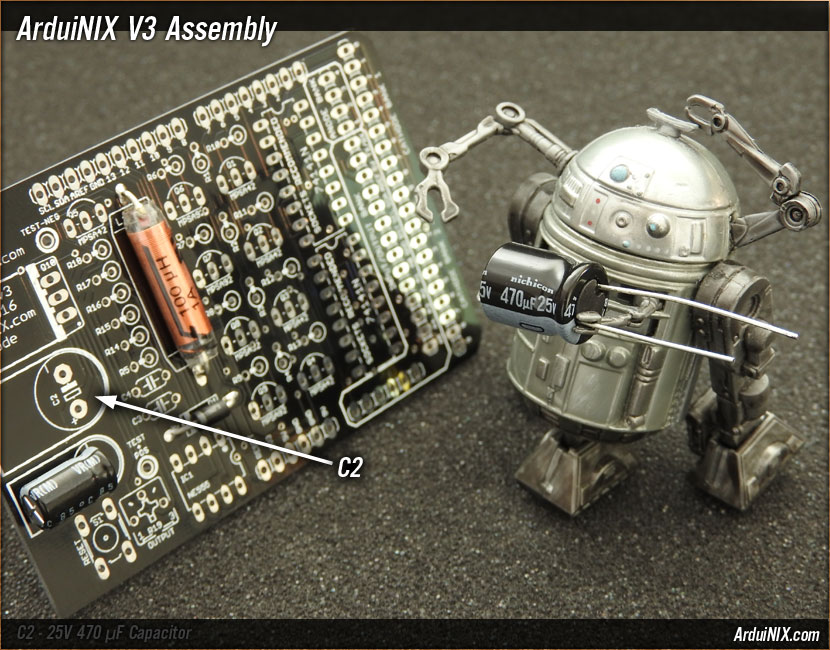

Step 4: C2 = 25Volt 470uF Capacitor

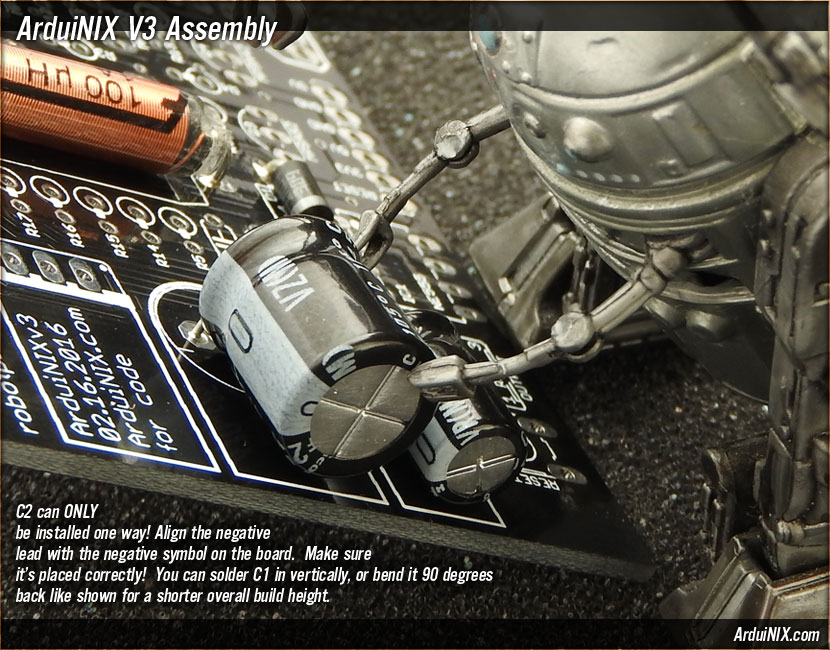

C2 is the larger of the two polarized capacitors. The negative lead is indicated on the side of the capacitor. Make sure to line up the negative lead with the negative pad on the board.

Again, you may choose to install C2 vertically, or bent 90 degrees as shown.
