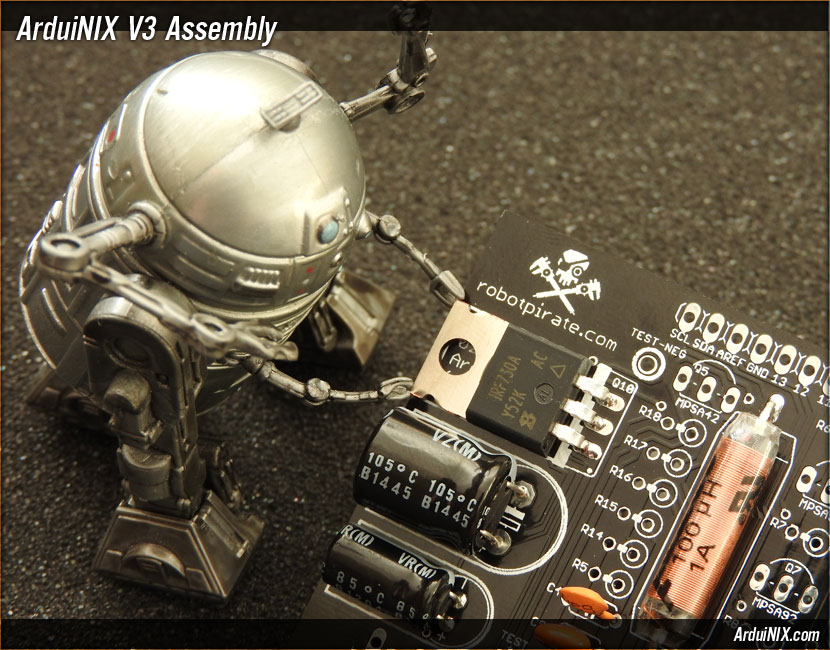

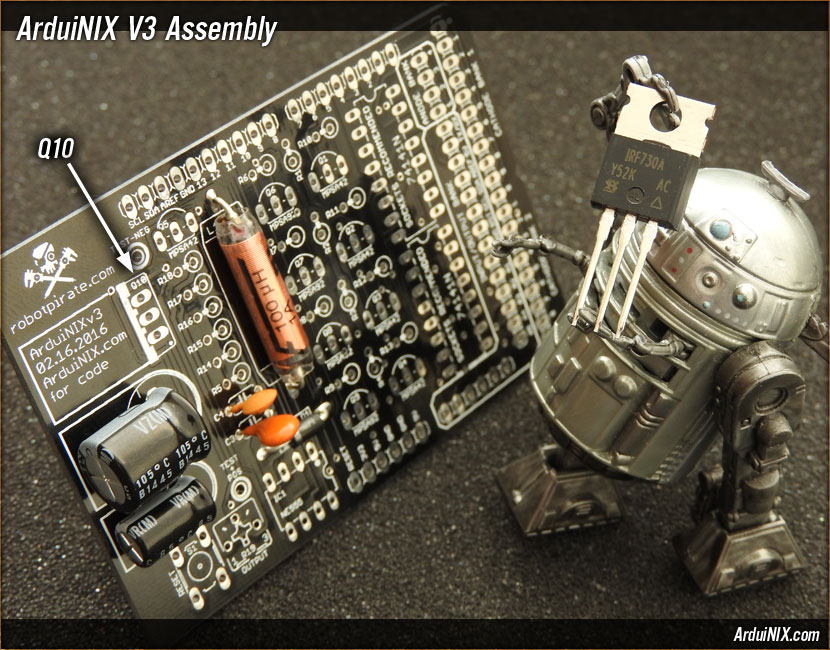

Step 7: Q10 = IRF 730 MOSFET Transistor This power transistor must be installed correctly, with the metal tab aligned over the solid white stripe at position Q10 on the board. You may choose to bend it 90 degrees as shown for a shorter overall build height.
