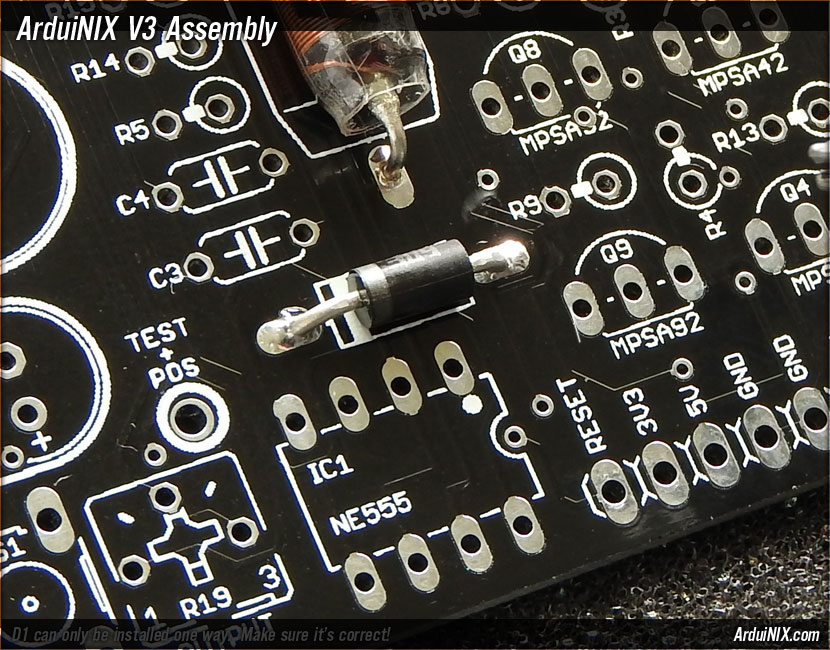

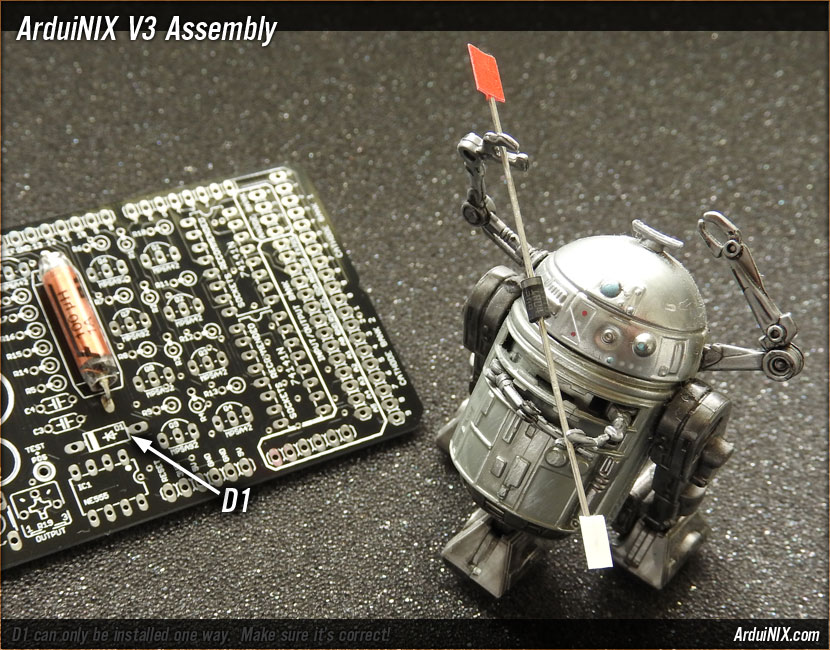

Step 2: D1 = Damper Diode 1.0 Amp 400V BYT01-400 D1 is the Fast Recovery Rectifier Diode. It can only be installed one direction, so make sure it goes in correctly. The band on one end shows you which side is the positive side. Be sure to line up the band on the diode with the diagram on the board.
