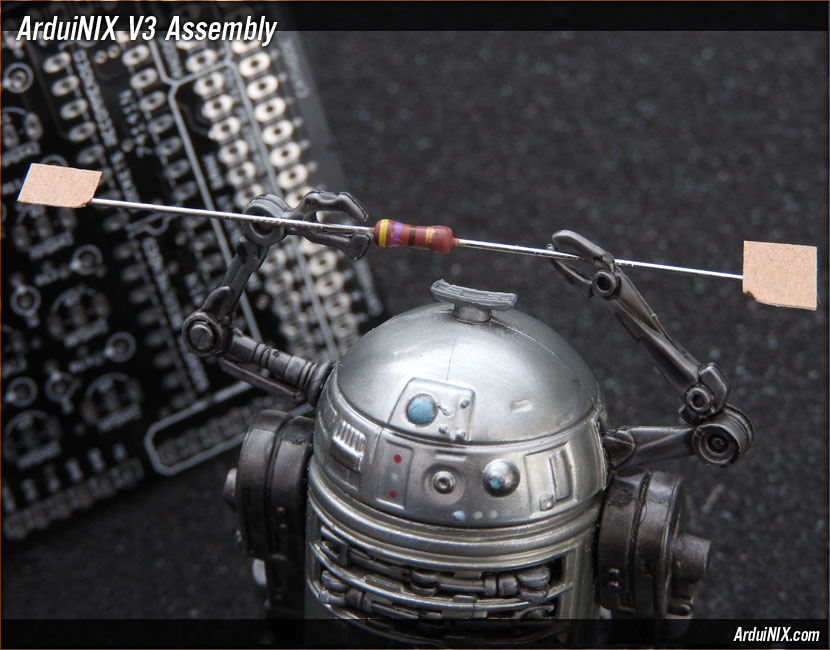

Step 17: R18 = 1x 1/4 Watt 470 Ohm Resistor

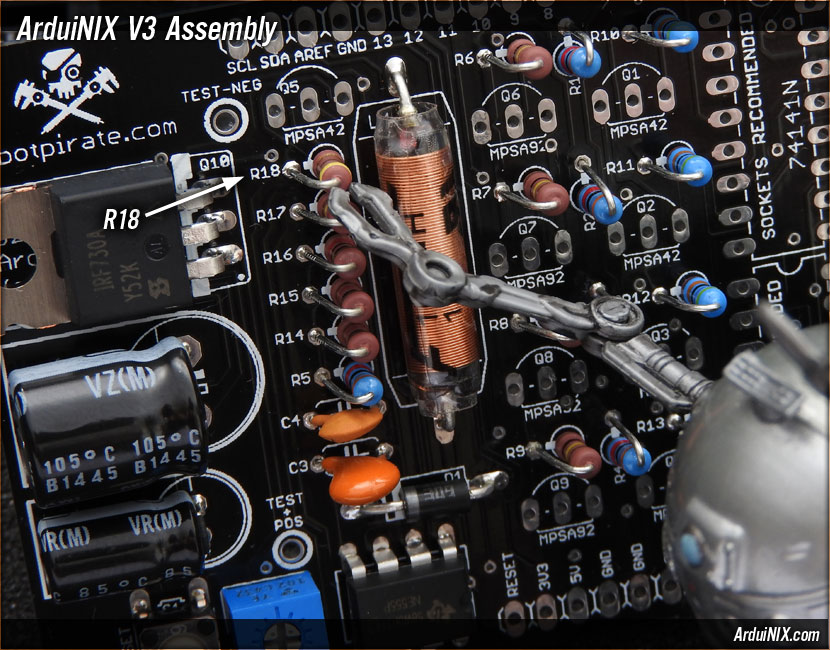

Test your resistors with a multimeter to make sure the proper ones are selected for each step. Install R18 above R17 at the top of the stack to the left of the coil.
