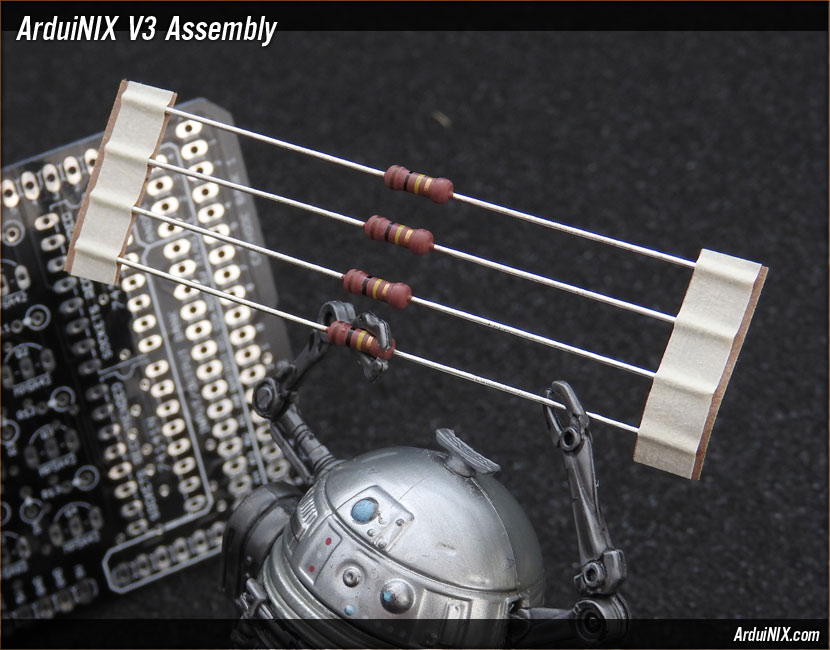

Step 12: R6 - R9 = 4x 1/4 Watt 100k Ohm Resistors

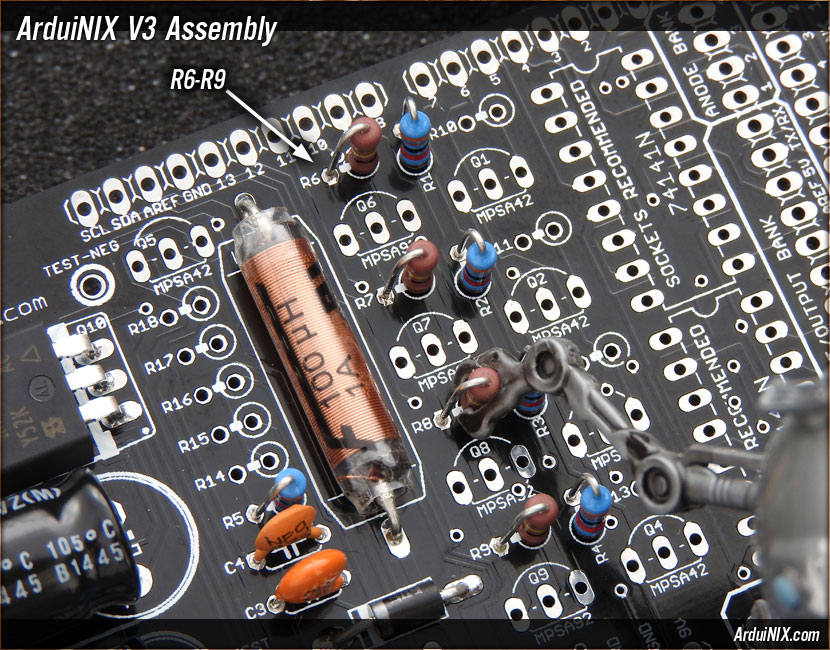

Test your resistors with a multimeter to make sure the proper ones are selected for each step. Install R6 through R9 in a row to the left of R1 through R4.
